Features and Benefits:

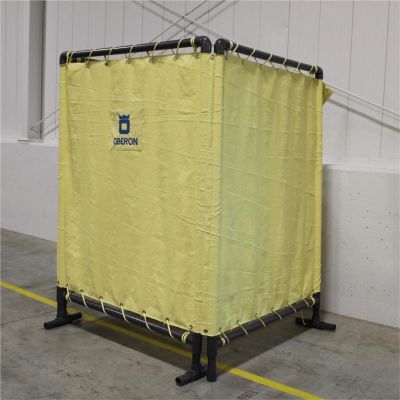

• Portable cube is made from a durable Aramid fabric that is tested and designed to divert energy away from the worker while performing every day electrical tasks. It can also serve as an additional barrier to safeguard workers that are in close proximity to electrical equipment.
• The cube can be moved from site to site and can be deployed on multiple configurations.
• The 4.5? x 6.5? cube framework is made from a durable Schedule 80 PVC frame and is comprised of 3 Aramid panels measuring 4�x5?. the panels are further reinforced by the use of Kevlar® rope for added strength and stability.
• Anchoring is recommended for holding the structure in place to contain or divert arc energy.
• Meets ASTM F2676 and ASTM F3272 test standards and is rated for a maximum arc current of 40 kA (BTP 517). Made in the USA. Some Assembly Required
• Curtain Rating: 40kA (BTP 517)
• Color: Yellow
• Export CoO #1: US
• Export ECCN: EAR99
• Export USMCA Compliant: Yes
• Export Net Code: No
• Export Preference Code: B
• Export Producer: Yes
• Export UNSPSC: 46191604
• NFPA 70E
• CSA Z462
• CAN/ULC S801
• ASTM F2676
• ASTM F3272
• Designed to protect workers in a variety of work environments such as underground vaults, confined spaces, and anyplace electrical equipment is located.
• Diverts energy away from workers.
• Anchoring is recommended for holding the structure in place to contain or divert arc energy.
• Meets ASTM F2676.
• 40kA(BTP 517)
• Panel dimensions are 4�x5?
• Our framework dimensions are 4.5� x 6.5�
• DOES NOT Provide insulation from shock.



Why Oberon?The original innovator of Arc Flash products, Oberon is dedicated to engineering, testingstandards, and being American made. We can�t stop and won�t stop providing for ourcustomer�s safety.
