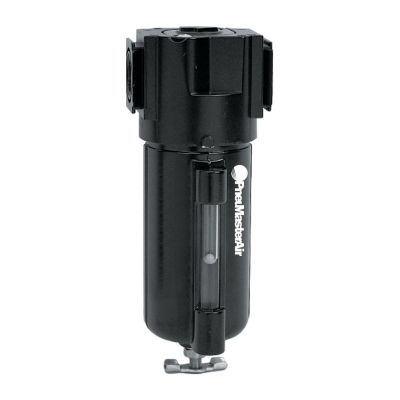

Arrow Pneumatic PneuMasterAir 1/2" NPT General Purpose Filter
Item ID: ARRPF354W
Free Item Included
Compare Products
Arrow Pneumatic PneuMasterAir 1/2" NPT General Purpose Filter
Item ID:
ARRPF354W
Arrow Pneumatic PneuMasterAir 1/2" NPT General Purpose Filter
Features and Benefits:
- Cleanable, reusable sintered bronze element
- 6 oz. metal bowl with sight glass
- Manual drain
- In line or modular installation
- Made in the U.S.A.
Removes liquid, water, dirt and debris from airlines. Protects components and air tools from premature failure.This unit comes standard with 1/2" NPT ports and a 40 micron element. It is rated at 175 psig and 100 SCFM.
| UPC | 094922133090 |
|---|---|
| Weight | 1.850000 |
| Brand | Arrow Pneumatic |
| Style | System |
| Air Inlet Size | 1/2" NPT |
| Drain Type | Manual |
| Filter body Material | Bronze |
| Gauge Included | No Guage |
| Maximum Operating Temeprature | 125 Degrees |
| Maximum Pressure in PSI | 100PSI |
| Bowl Capacity | 6 Oz. |
| Bowl Material | plastic |
| Filtration micron size | 40/5/3 Microns |
| Number Of Stages | 3 Stages |
| Flow in CFM | 100 |
| Item | Air Filter |
Warranty Info:
Warranty returns may need to be processed by the manufacturer. View the manufacturer’s warranty policy for more details.1 yr warranty on material and workmanship
